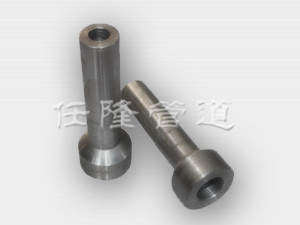

Short Pipe Branch Outlet

Name: Outlet / Olets

Specification: DN6~DN100 (1/8"~4")

Pressure Rating: SCH40, SCH80, SCH160, XS, XXS, 2000LB, 3000LB, 6000LB

Material: Carbon Steel (CS), Stainless Steel (SS), Alloy Steel (AS)

Type: Welded Outlet, Socket Weld Outlet, Threaded Outlet, Nipple Outlet, Mitered Outlet, Elbow Outlet, Flanged Outlet

Process: Sawing, Heat Treatment, Die Forging, Machining

Overview of Outlet:

The outlet is a reinforced pipe fitting for branch connection that has been widely used abroad in recent years. It replaces traditional branch connection forms such as reducing tees, reinforcing plates and reinforced pipe sections. It features outstanding advantages including high safety and reliability, cost reduction, simple construction, optimized medium flow channel, serialized standardization and convenient selection for design. It is increasingly widely applied in high-pressure, high-temperature, large-diameter and thick-walled pipelines, gradually replacing conventional branch connection methods. The outlet body is made of high-quality forgings with the same material as the main pipeline. Our company provides multiple material options including carbon steel, alloy steel and stainless steel. The outlet is welded to the main pipe, and the connections between the outlet and branch pipes or other fittings (such as nipples, pipe plugs), instruments and valves are available in multiple forms including butt welding, socket welding and threading.
