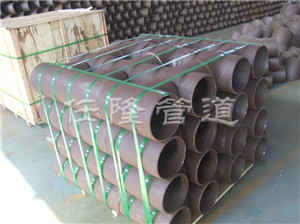

welded reducing tee

Product Name: Reducing Tee

Execution Standards: GB/T 12459-2005, ASME B16.9, SH 3408, 02S403, etc.

Materials Used: 20#, Q235A, 20G, 15CrMo, 1Cr5Mo, 12Cr1MoV, 304, 316L, 321, etc., in accordance with the relevant provisions for materials specified in GB/T 12459-2005.

Production Method: Press forming

For the specific manufacturing technical plan, please refer to the Pipe Fitting Manufacturing Technical Plan of Hebei Renlong Pipeline Accessories Co., Ltd.

Reducing Tee: A reducing tee is a type of tee, serving as the connecting component between pipe fittings and pipelines. All three ends can be connected to pipe fittings. A tee is defined as a reducing tee when the diameter of the branch pipe differs from that of the other two pipes.

Reducing tees are widely used in the construction and maintenance of engineering projects in industries such as petrochemicals, petroleum and natural gas, liquefied gas, chemical fertilizers, power plants, nuclear power, shipbuilding, papermaking, pharmaceuticals, food hygiene, urban construction, and others.

Tees are generally classified into equal tees and reducing tees, with the following representation methods:

Example: "T3" indicates an equal tee with an outer diameter of 3 inches.

"T4*4*3.5" indicates a reducing tee with a main diameter of 4 inches and a branch diameter of 3.5 inches.

Common materials include 10#, 20#, A3, Q235A, 20g, 20G, 16Mn, ASTM A234, etc.

Our company specializes in manufacturing: national standard tees, non-standard tees, special-shaped tees, American standard tees, German standard tees, etc.; straight-seam seamless tees, straight-seam tees, and thick-wall tees made of various carbon steel materials.

In addition, our factory can design and produce various difficult tee fittings, including equal oblique tees and reducing oblique tees at any angle.

Materials include: 10#, 20#, A3, Q235A, 20g, 20G, 16Mn, ASTM A234, etc.

For specific dimensions, please refer to the dimension reference tables for tees and crosses.
