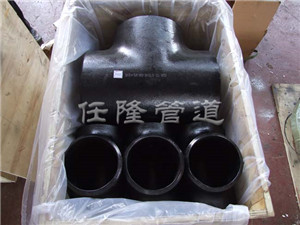

Welded equal tee

Product Name: Straight Tee

Execution Standards: GB/T 12459-2005, ASME B16.9, SH 3408, 02S403, etc.

Materials Used: 20#, Q235A, 20G, 15CrMo, 1Cr5Mo, 112Cr1MoV, 304, 316L, 321, etc., in accordance with the relevant provisions for materials specified in GB/T 12459-2005.

Production Method: Press forming

For the specific manufacturing technical plan, please refer to the Pipe Fitting Manufacturing Technical Plan of Hebei Renlong Pipeline Accessories Co., Ltd.

A straight tee is a type of tee fitting. Tees are generally divided into two categories: straight tees and reducing tees. They are named so because all three ends can be connected to pipes. Straight tees are widely used in the construction and maintenance of engineering projects in industries such as petrochemicals, petroleum and natural gas, liquefied gas, chemical fertilizers, power plants, nuclear power, shipbuilding, papermaking, pharmaceuticals, food hygiene, and urban construction. Industrial applications impose high pressure requirements on such pipe fittings, with a maximum pressure of up to 600 kg, while water pipes in daily use have lower pressure, typically 16 kg.

Since tees are applicable to various industries, they can be classified into the following types based on different criteria:

1. By material: carbon steel, cast steel, alloy steel, stainless steel, copper, aluminum alloy, etc.

2. By manufacturing method: drawn, pressed, forged, cast, etc.

3. By manufacturing standard: national standard, electrical standard, water supply standard, American standard, German standard, Japanese standard, Russian standard, etc.

A straight tee has two ends of the same diameter, while a reducing tee refers to a tee where the branch pipe has a different diameter from the other two. The designation methods are as follows: for a straight tee, for example, "T3" indicates a straight tee with an outer diameter of 3 inches. For a reducing tee, for example, "T4×4×3.5" indicates a reducing tee with a main diameter of 4 inches and a branch diameter of 3.5 inches.

Common materials include 10#, 20#, A3, Q235A, 20g, 20G, 16Mn, ASTM A234, ASTM A105, ASTM A403, etc. The outer diameter of tees ranges from 2.5" to 60", with welded tees available from 26" to 60". Wall thickness ranges from 28 to 60 mm.

Pressure Ratings: Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS, Sch80, Sch100, Sch120, Sch140, Sch160, XXS.

Surface Treatment: Anti-rust painting; cold galvanizing and hot-dip galvanizing are also available.

Packaging: Wooden cases, wooden pallets, or other methods.

Brand: Renlong

Place of Origin: Yanshan County, Cangzhou City, Hebei Province
