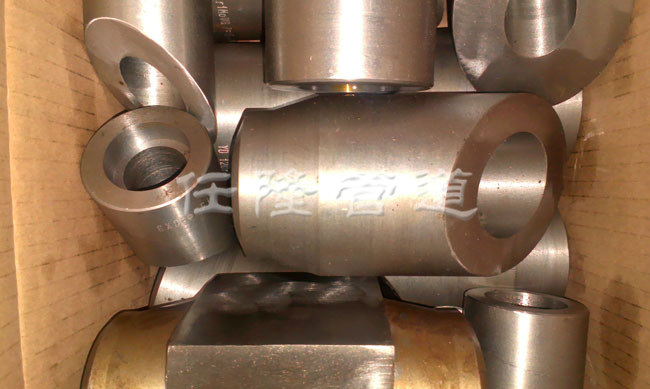

Elbow Branch Outlet

Name: Branch Outlet / Olets

Specification: DN6~DN100 (1/8"~4")

Pressure Rating: SCH40, SCH80, SCH160, XS, XXS, 2000LB, 3000LB, 6000LB

Material: Carbon Steel (CS), Stainless Steel (SS), Alloy Steel (AS)

Type: Welded Branch Outlet, Socket Weld Branch Outlet, Threaded Branch Outlet, Nipple Branch Outlet, Mitered Branch Outlet, Elbow Branch Outlet, Flanged Branch Outlet

Process: Sawing, Heat Treatment, Die Forging, Machining

Standard: ASME B16.11, GB/T14383-2008, MSS SP-83, BS3799

Branch Outlet Overview:

Branch outlets are reinforced pipe fittings for branch connection that have been widely used abroad in recent years. They replace traditional branch connection forms such as reducing tees, reinforcing plates and reinforced pipe sections. They feature outstanding advantages including high safety and reliability, cost reduction, simple construction, optimized medium flow passage, serialized standardization and convenient selection for design. They are increasingly widely applied in high-pressure, high-temperature, large-diameter and thick-walled pipelines, and have substituted conventional branch connection methods. The main body of branch outlets is made of high-quality forgings with the same material as pipelines. Our company provides multiple material options including carbon steel, alloy steel and stainless steel. Branch outlets are welded to main pipes, and the connections between branch outlets and branch pipes or other fittings (such as nipples, pipe plugs), instruments and valves adopt various forms including butt welding, socket welding and threading.
