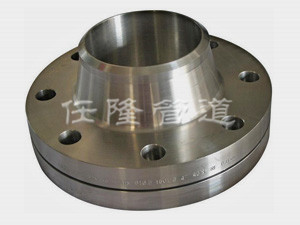

ASME B16.5 standard flange

American standard flanges feature excellent corrosion resistance, acid and alkali resistance, long service life, reasonable pricing, smooth surfaces, high temperature resistance alongside acid and alkali tolerance, attractive appearance, and strong texture and performance. In actual operation and application, American standard flanges must be used and controlled in accordance with specified standards and specifications, as well as national standards. They are applied across various industrial sectors, playing a crucial role in connection and performance.

Production process: Professional integral forging, forging and stamping manufacturing, etc.

Processing methods: High-precision CNC lathe turning, precision turning on conventional lathes, argon arc welding, and other processing techniques.

Nominal pressure: sch5s, sch10s, sch20s, sch30s, sch40s, etc.

Manufacturing standards: GB (Chinese standard), ANSI (American standard), GOST (Russian standard), JIS (Japanese standard), etc.

American standard flange connection involves fixing two pipes, fittings or equipment onto respective flanges first, placing a gasket between the two flanges, and then fastening them together with bolts to complete the connection. Some pipes and equipment come with integrated flanges, which also fall under flange connections.

American standard flanges are classified into threaded (screwed) flanges and welded flanges. Screwed flanges are used for low-pressure and small-diameter applications, while welded flanges are adopted for both high-pressure and low-pressure large-diameter scenarios. Flanges under different pressures vary in plate thickness, as well as the diameter and quantity of connecting bolts.

Currently, China ranks first in Asia in terms of flat welding flange output, with an annual output of 2.25 million tons in 2000 and 2.46 million tons in 2001; its growth rate has slowed down in recent years.

Materials: 304, 316, 316L, 0Cr18Ni9, 321, 202, etc.

Applications: Widely used in water conservancy, electric power, power stations, pipeline accessories, industry, pressure vessels, etc.

Connection methods: Flange nuts and bolt connections.

Product process standards and quality control: Material incoming → physical and chemical testing → blanking → hot forging forming → heat treatment → inspection → metal processing → finished product inspection → marking → finished product inspection → marking → packaging and marking → delivery
