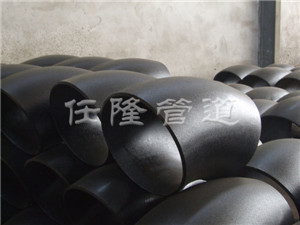

90° short radius elbow (R=1D)

Product Name: 90° Short Radius Elbow (R=1D)

Executive Standards: GB/T12459-2005, ASME B16.9, SH3408, 02S403

Materials: 20#, Q235A, Q235B, 20G, WP11, WP12, WP22, 30, 304L, 316, 316L, 321, etc., in accordance with the relevant provisions on materials specified in GB/T12459-2005.

Production Method: Mandrel pushing, pressing

For the specific manufacturing technical plan, please refer to the Pipe Fitting Manufacturing Technical Plan of Hebei Renlong Pipeline Accessories Co., Ltd.

Technical Requirements: (Click the following links to access)

Elbow Structure Drawing and Parameters

Specifications for Dimensional Deviations of Pipe Fittings

Commonly Used Domestic Materials and Codes

Chemical Elements and Introduction

Steel Pipe Outer Diameter and Wall Thickness Table

Production Process Drawings of Pipe Fittings and Flanges

Chemical Compositions and Mechanical Properties of Common Materials

Product Quotation

Others: Marking on products (steel stamping, spray painting or printing)

Surface Treatment: Paint coating for rust prevention; cold galvanizing and hot galvanizing are also available.

Packing: Wooden cases, wooden pallets or other packages

Brand: Renlong

Place of Origin: Yanshan County, Cangzhou City, Hebei Province
